IP68 Super night vision 6 LEDs Car Reversing camera car backup camera

FOB Reference Price:Get Latest Price
US $11-13 / Pieces | 200 Piece/Pieces (Min. Order)
Screen Size:
Other
Customization:
Customized packaging (Min. Order: 500 Pieces)
Customized logo (Min. Order: 1000 Pieces)
Report Suspicious Activity
Overview
Quick Details
Screen Type:
16:9
Placement:
windshield
Certification:
CE, FCC
Car Make:
Most car brands
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Auto-vox
Model Number:
RVC-CAM1
Warranty:
18 Months
Color:
Black
TV System:
PAL/ NTSC
wide angle:
170 degree
size:
33mm X 26mm (L*W)
resolution:
600TV line
minimum illumination:
0
Image device:
1/3 inch color
waterproof:
IP68
Operating temperature:
-25 to 65 degree
Chipset:
HD CMOS (1099,1058,3089)
Packaging & Delivery
Lead Time :
Quantity(Pieces) 1 - 500 >500
Est. Time(day) 15 To be negotiated
Detailed Images

RVC-CAM1 Key features:

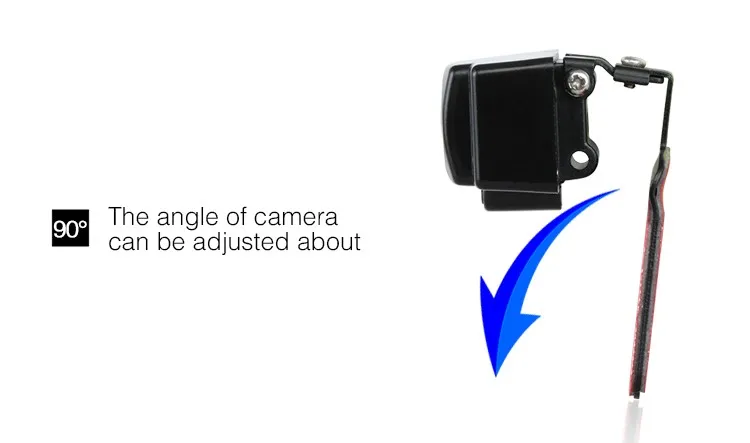

* Clip-on adhesive bracket for easy installation.

  Other two kinds of brackets is for option but not included


*Supper night vision.

 6 High brightness LEDs automatically turn on/off according to environment illumination


 * With parking guide lines, it can be deactivated by cutting wire loop

*HD CMOS (1099,1058,3089) chip set,

 Night vision, image quality and view angle are all better than Common CMOS (7070 chipset)


 * 5 glass lens

*1/3" image sensor better than 1/4"

*Resolution: 600TV Line

* Viewing angle: 170 °(diagonal)

* LED*6 : 28 lumen for singel LED

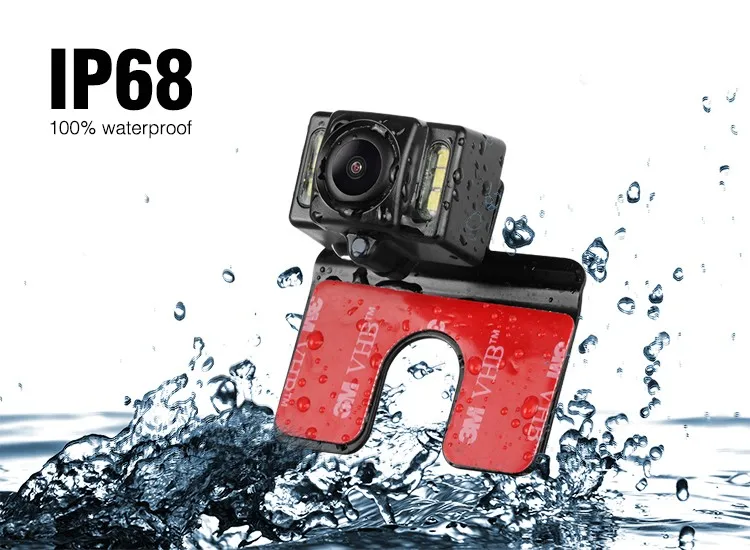

* Hidden bracket, no need to drill hole for installation Real water proof IP68 camera

Specifications:

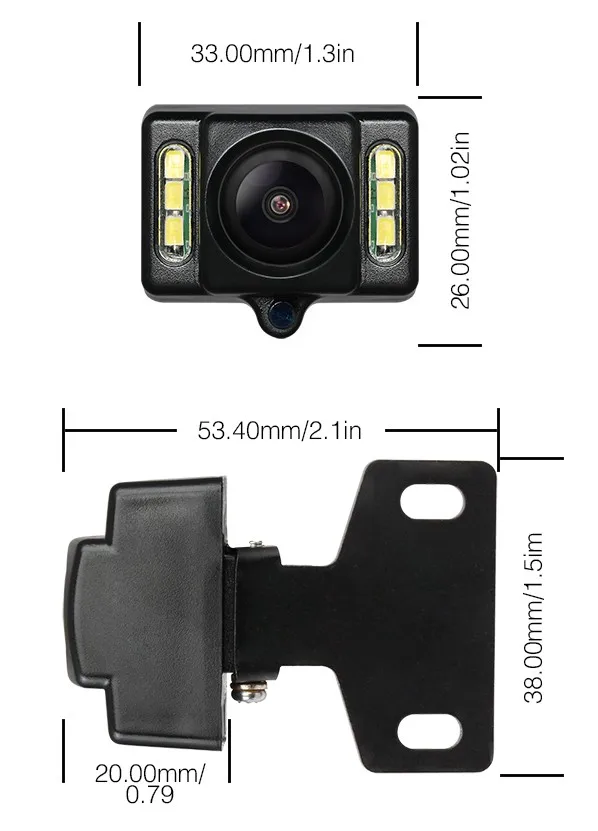

 Camera main body size: 33mm X 26mm (L X W) Image device:1/3-inch colour
TV system:PAL or NTSC
LED*6 : 28 lumen for singel LED
Resolution:600 TV lines

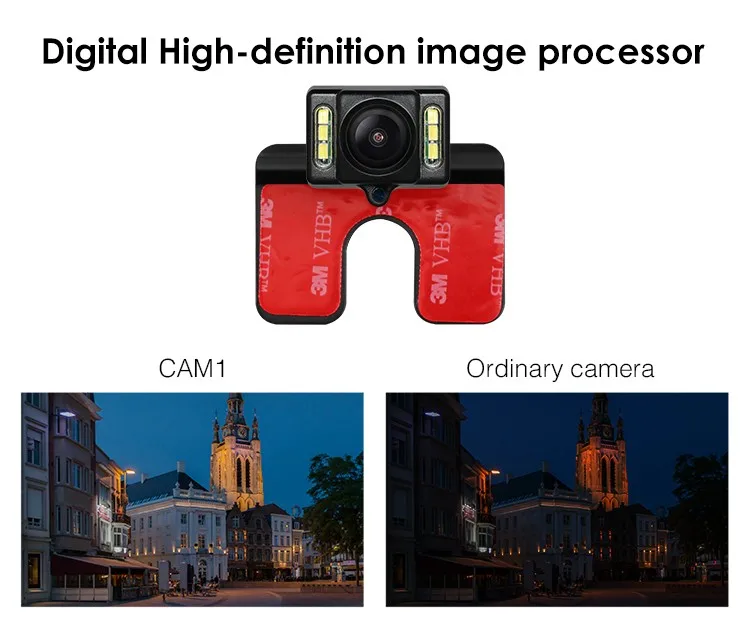

Processor: Digital HD image processor
Electric Shutter PAL:625Lines.25Field /sec NTSC :720Lines.25Field/sec
Effective pixels PAL:720X 576 NTSC: 720X 480
Minimum illumination:0Lux
Viewing angle:170 degrees (diagonal)
S/N ratio:>46.4dB (AGC-OFF)

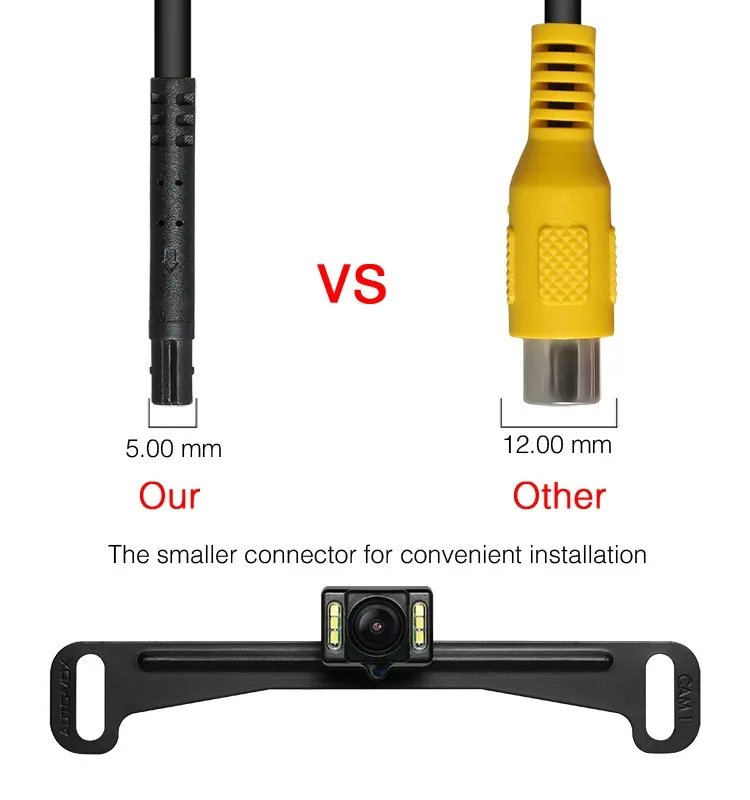

Video output:RCA connector,1.0vp-p, 75ohm
Current consumption:≤250mA
Waterproof: IP68 Standard
Power supply:DC 12V
Operating temperature:-25 to 65 degrees centigrade, RH95% Max.
Storage temperature:-35 to 70 degrees centigrade, RH95% Max.
automatic white balance, AGC and BLC


Our Company


About US

AUTO-VOX is a well established company with 10 years experiences in researching, making and sales of car mirror monitor, car camera and other auto electronics.

We are customer focus, quality driven with 99.5%qualified rate, value oriented and innovative.


We have cooperated with UK famous electronics chain store retailer-MAPLIN since 2009. In 2015, we become the indirect supplier of BESTBUY. In recent years.we concentrate on developing innovative products such as car side view camera and wireless back up camera for GM OEM project.

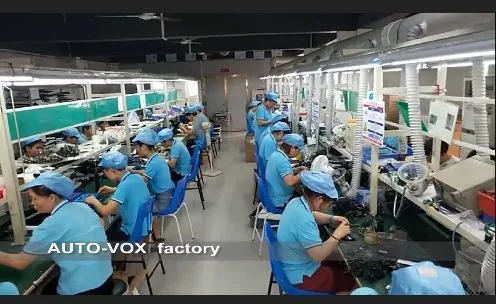

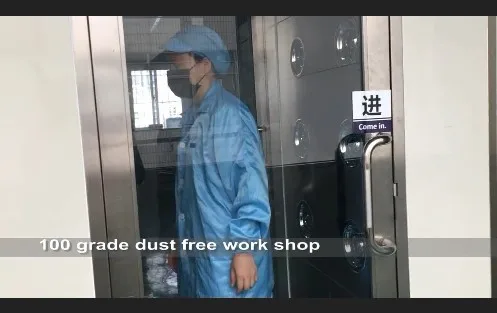

Factory profile: 1500 square meters, class 100 dust-free work shop, 50 workers, 4 engineers, 70,000 PCS production capacity per month.




Our Service

Why choose us:

1.
0.1% return rate , 99.5%qualified rate-strict QC system, complete QC process, including IQC,PQC,FQC, QAC,QC staff consist of engineers, technicians and production staff with 8 years professional experience and fully trained to conduct QC

2. 20% Profit is invested on R&D-20% profit is invested on R&D to meet the market demand, we focus on the market feedback and develop market-oriented new models. 2-3 new items will be released each season by our 8-years-experience R&D technicians.

3. 24 hours a day to serve you-24 hours customer service to solve your problems at shortest time, your inquiry& request will be replied within 24hours.

4. High quality components and materials-Key components are sourced from USA, Japan, Korea, Taiwan and reliable local manufacturers with brands such as Sony, Sharp, AU.

FAQ

Q1: What is your warranty terms?

A1: 18 months is guaranteed from the production date; we share half of shipping and other related cost for returned goods due to our quality faulty; and 1% free spare units will be provided and be shipped with bulk order.

Q2: What is your MOQ?
A2: 100 pieces per model.

Q3: What is your lead time?
A3: 10-15 working days upon receipt of your payment.

Q4:What is your delivery way?
A4: DHL, FedEx, UPS, EMS, TNT, Airfreight ( It's up to our sincere customers).

Q5: What is your payment terms?
A5: T/T(Bank transfer), PayPal, Western Union, Money Gram.

Q6: Do you support OEM or ODM?
A6: OEM & ODM are welcomed.

Q7: Do you have any certificate for your products?
A7: Yes, we have CE, FCC, RoHS, E-mark certificate for our products.
